Servidores Paralelos de Memoria Compartida

Arquitectura ccNUMA

	V2250	V2500 (SMP)	V2600 (SMP)	V2500/ V2600 (SCA)
System Processing Unit
Central processor	64-bit PA-RISC PA-8200	64-bit PA-RISC PA-8500	64-bit PA-RISC PA-8600	64-bit PA-RISC PA-8600
Clock frequency	240 MHz	440 MHz	552 MHz	440 or 552 MHz
Number of processors	1–16	2–32	2–32	16–128
Cache size (per processor)	Direct map 2-MB L2 Data Cache 2-MB L2 Instruction Cache	Four-way set-associative 1-MB L1 Data Cache (on-chip) 0.5-MB L1 Instruction Cache (on-chip)	Four-way set-associative 1-MB L1 Data Cache (on-chip) 0.5-MB L1 Instruction Cache (on-chip)	Four-way set-associative 1-MB L1 Data Cache (on-chip) 0.5-MB L1 Instruction Cache (on-chip)
Operating environment	HP-UX 11	HP-UX 11	HP-UX 11	HP-UX 11

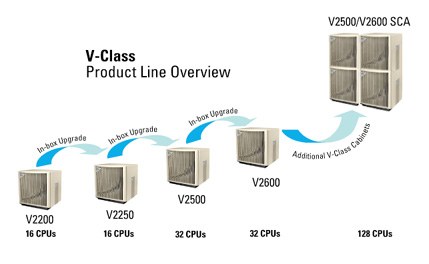

	V2250	V2500 (1 Cabinet)	V2500 (4 Cabinets) SCA configuration	V2600
HyperPlane Crossbar, Memory Subsystem (SMP, SCA)
Memory Architecture	Crossbar-based symmetric multiprocessor (SMP)	Crossbar-based symmetric multiprocessor (SMP)	Crossbar-based symmetric multiprocessor (local cabinet) Cache-coherent, non-uniform memory access (remote cabinet)	Crossbar-based symmetric multiprocessor (SMP)
Type	8x8 non-blocking multiported crossbar	8x8 non-blocking multiported crossbar	8x8 non-blocking multiported crossbar (local cabinet) 8-way interleaved, split-transaction SCA HyperLinks (remote cabinet)	8x8 non-blocking multiported crossbar
Bandwidth (max.)	15.36 GB/s	15.36 GB/s	61.44 GB/s	15.36 GB/s
Memory Capacity	1 GB to 16 GB ECC protected	1 GB to 32 GB ECC protected	4-GB to 128-GB ECC protected	1 GB to 32 GB ECC protected
Memory Interleaving	Up to 32-way	Up to 256-way	256-way per cabinet	Up to 256-way
I/O Subsystem
Number of channels	8 x PCI 32-bit	8 x PCI 64-bit	32 x PCI 64-bit	8 x PCI 64-bit
Channel bandwidth	240 MB/s (bidirectional)	240 MB/s (bidirectional)	240 MB/s (bidirectional)	240 MB/s (bidirectional)
Peak Aggregate I/O Channel Bandwidth	1.9 GB/s	1.9 GB/s	7.6 GB/s	1.9 GB/s
Number of PCI I/O cards	1 to 24	1 to 28	4 to 112	1 to 28
Controllers Supported	FWD SCSI-2, ATM, Fibre Channel, Token Ring, 10/100Base-T, 1000Base-SX, FDDI, HyperFabric, X.25	FWD SCSI-2, Ultra2 SCSI, ATM, Fibre Channel, Token Ring, 10/100Base-T, 100 Base-Fx, 1000 BaseSX GB , FDDI, HyperFabric, X.25	FWD SCSI-2, Ultra2 SCSI, ATM, Fibre Channel, Token Ring, 10/100Base-T, 100 Base-Fx, 1000 BaseSX GB , FDDI, HyperFabric, X.25	FWD SCSI-2, Ultra2 SCSI, ATM, Fibre Channel, Token Ring, 10/100Base-T, 100 Base-Fx, 1000 BaseSX GB , FDDI, HyperFabric, X.25
User Accessible Meida Drives	650-MB 12X CD-ROM drive 12-GB DDS-3 DAT drive	DVD drive 12-GB DDS-3 DAT drive	DVD drive 12-GB DDS-3 DAT drive	DVD drive 12-GB DDS-3 DAT drive
Internal Storage (not supported for HA configurations)
Number of Drives	16	16	64	16
Capacity (max)	288 GB	288 GB	1.1 TB	288 GB
External Storage	Supported in 19" RETMA standard Rack Up to 40 TB of Fibre Channel information storage	Supported in 19" RETMA standard Rack Up to 50 TB of Fibre Channel information storage	Supported in 19" RETMA standard Rack Up to 200 TB of Fibre Channel Information storage	Supported in 19" RETMA standard Rack Up to 50 TB of Fibre Channel information storage
Physical Specifications
Cabinet Dimensions	39" (99.06 cm) + 31.5"(80.01) + 37" (93.98 cm) per cabinet	39" (99.06 cm) + 31.5"(80.01) + 37" (93.98 cm) per cabinet	39" (99.06 cm) + 31.5"(80.01) + 37" (93.98 cm) per cabinet	39" (99.06 cm) + 31.5"(80.01) + 37" (93.98 cm) per cabinet
Maximum Cabinet Weight	490 lb. (222.73 kg)	490 lb. (222.73 kg)	490 lb. (222.73 kg)	490 lb. (222.73 kg)
Environmental Specifications
Operating Temperature	20 to 30° C	20 to 30° C	20 to 30° C	20 to 30° C
Humidity	40 to 60%	40 to 60%	40 to 60%	40 to 60%
Thermal dissipation	5500 W (4351 Kcal/Hour) maximum	7500 W (5934 Kcal/Hour) maximum	7500 W (5934 Kcal/Hour) maximum	7500 W (5934 Kcal/Hour) maximum
Power Requirements	208/220 VAC single-phase (U.S.) 200VAC single-phase (Far East) 230 VAC single-phase (Europe)	208/220 VAC single-phase (U.S.) 200VAC single-phase (Far East) 230 VAC single-phase (Europe)	208/220 VAC single-phase (U.S.) 200VAC single-phase (Far East) 230 VAC single-phase (Europe)	208/220 VAC single-phase (U.S.) 200VAC single-phase (Far East) 230 VAC single-phase (Europe)
